Supplies A Full Range Of 316 SS Socket Head Cap Screw, Stainless Steel Socket Head Screws, SS Socket Head Cap Screws Manufacturers At Factory Price In India. Carries A Complete Line Of Stainless Steel Socket Head Shoulder Screw, Stainless Steel Countersunk Socket Screws, Stainless Steel Socket Button Screws In Mumbai, India
A 316 SS Socket Head Cap Screw, or an Allen bolt is type of a fastener with a cylindrical head and hexagonal drive hole. These Stainless Steel Socket Head Cap Screws are produced from various grades of stainless steel, depending on the end use of the product. For example, the 316 Stainless Steel Socket Head Screw is one of the two most commonly used austenitic grades of stainless steel which offers great mechanical properties like increased strength, hardness and improved corrosion resistance.
Typically, the Stainless Steel Socket Button Screws also known as Hex Socket Round Heads, have a dome shaped head with a hexagon socket drive or an Allen key. They are used in the marine industry and are used in the construction of machinery.Application of the Stainless Steel Socket Shoulder Screws include sliding or rotation. They are found in pulley shafts and in punch or die works where they act as bearing pins and they limit the die springs in the stamp housing or the mould.
Stainless Steel Countersunk Socket Screws are used in those applications where the fastener is required to hold or fasten two objects, with the head of the screw being as close to the surface of the object, which in turn could be covered by either a piece of wood or a screw cap.We are one of the leading SS socket head cap screws manufacturers.
| Grade | 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Socket Head Cap Screws |
|---|---|
| Stainless Steel Screw standard | ISO 14583 |
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Stainless Steel counter sunk screws standard | ISO 10642 |
| British standards | BS 57 |
| Stainless Steel Socket Head Cap Screws Size | Cold Froging : M2-M24 Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg Stainless Steel Socket Head Cap Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm |
| Stainless Steel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | ISO 14585C ~DIN 7981C DIN 7973C ~ISO 1483 DIN 7983C ~ISO 7051 ISO 4762, ISO 2009, ISO 7050, ISO 14587, ISO 14587, ISO 14584, ISO 14582 ANSI B18.3.1M ASME B18.6.3 GB/T5782, GB/T5783, GB5783 DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Finishing: | Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire DraHex, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of Stainless Steel Socket Head Cap Screws are Western European. However projects with eastern origin are possible on request. |
| Surface Coating: | Ptfe Coated Socket Head Cap Screws Hot Dipped Galvanizing Socket Head Cap Screws Phosphate Socket Head Cap Screws Teflon Socket Head Cap Screws Xylon Socket Head Cap Screws Zinc Phosphate Socket Head Cap Screws Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium Socket Head Cap Screws All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment | Polish Passivation Anodizing Sand blasting Heat-disposing Hot-dip galvanizing Rust preventive oil Black oxide coating Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver) |
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| Stainless Steel Hex Nuts Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? | Best Price in India and compare to China Professional technical team High precision threads Strong production line Manifold Pipe Solution Inc. will be your reliable partner |
| MOQ | 5 pieces |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1, Tensile testing to ISO 898-1 Nut proof load testing to ISO 898-2 Suitability for preloading to EN 14399-2 Suitability test for calibrated preload to EN 14399-10 Charpy Impact testing in accordance with ISO 148-1 Hardness testing to ISO 6508-1 Tri-Roll Thread Comparators Calibrated gauges and tools |
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material | Stainless Steel Hex Head Screws: SUS201, SUS304, SUS316, SUS410 Brass Socket Head Cap Screws: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40) Bronze Socket Head Cap Screws: C51000, C52100, C54400 etc Aluminum Socket Head Cap Screws: Al6061, Al6063 etc Aluminum Alloy Socket Head Cap Screws: Al6061, Al6063 etc Titanium and Titanium Alloy Socket Head Cap Screws: TAD, TA1-TA8, TB2, TC1-TC10 Alloy steel Socket Head Cap Screws: SCM435, C10B21, C10B33 |
| Stainless Steel Socket Head Cap Screws dealers & distributors are located in | Gujarat, Manama, Ahmedabad, Janeiro, Dammam, Thiruvananthapuram, Rajkot, Mumbai, Calgary, Pimpri-Chinchwad, London, Ankara, Santiago, Bangalore, Bogota, Abu Dhabi, Tehran, Howrah, Melbourne, Gurgaon, , Indore, Kuwait, Bengaluru, Surat, Ahvaz, Hyderabad, Sydney, Ludhiana, Baroda, Chennai, Kanpur, Perth, Ludhiana, Ranchi, Muscat, Lagos, Gimhae-si, Courbevoie, Tau, Coimbatore, Vadodara, Kolkata, Ernakulam, Karachi, Nagpur, Istanbul, Caracas, India, Riyadh, Khobar, Port-of-Spain, Montreal, Jamshedpur, Noida, Mexico New Delhi |
| Uses & application | Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry |
India’s Largest Manufacturer Of Stainless Steel Socket Screws, Brushed Stainless Steel Socket Screws, 316 Stainless Steel Socket Head Screw In Mumbai, India

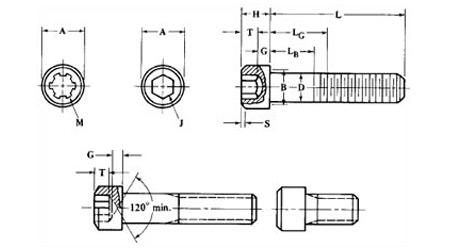

| Diameter | Screw Head | Body Diameter (D) | ||
|---|---|---|---|---|
| Diam, in (A) | Height, in (H) | Min | Max | |
| 3/8″ | 0.563 | 0.375 | 0.3750 | 0.3690 |
| 7/16″ | 0.656 | 0.438 | 0.4375 | 0.4305 |
| 1/2″ | 0.75 | 0.5 | 0.5000 | 0.4930 |
| 9/16″ | 0.844 | 0.563 | 0.5625 | 0.5545 |
| 5/8″ | 0.938 | 0.625 | 0.6250 | 0.6170 |
| 3/4″ | 1.125 | 0.75 | 0.7500 | 0.7410 |
| 7/8″ | 1.313 | 0.875 | 0.8750 | 0.8660 |
| 1″ | 1.5 | 1 | 1.0000 | 0.9900 |
| 1-1/8″ | 1.688 | 1.125 | 1.1250 | 1.1140 |
| 1-1/4″ | 1.875 | 1.25 | 1.2500 | 1.2390 |
| 1-1/2″ | 2.25 | 1.5 | 1.5000 | 1.4880 |
| 1-3/4″ | 2.625 | 1.75 | 1.7500 | 1.7160 |
| 2″ | 3 | 2 | 2.0000 | 1.9640 |
| LENGTHS | #2 | #3 | #4 | #5 | #6 | #8 | #10 | #12 | 1/4″ | 5/16″ | 3/8″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 0.40 | 0.55 | 0.70 | 1.1 | 1.4 | ||||||
| 3/16 | 0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | ||||
| 1/4 | 0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | ||
| 5/16 | 0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | |
| 3/8 | 0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
| 7/16 | 0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
| 1/2 | 0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
| 9/16 | 0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
| 5/8 | 1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
| 3/4 | 1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
| 7/8 | 1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
| 1″ | 1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
| 1-1/8″ | 1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
| 1-1/4″ | 1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
| 1-1/2″ | 1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
| 1-3/4″ | 2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
| 2″ | 2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
| 2-1/4″ | 2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
| 2-1/2″ | 2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
| 2-3/4″ | 3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
| 3″ | 3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
| * Weights above are approximate and are based on pan head machine screws |
Buy Stainless Steel Socket Shoulder Screws, Stainless Steel Socket Button Screws, 18-8 Stainless Steel Socket Head Cap Screws At Factory Price In India
