Supplies A Full Range Of Stainless Steel Countersunk Wood Screws, Stainless Steel Countersunk Machine Screws, Ss Countersunk Screws Manufacturer In India At Factory Price In India. Carries A Complete Line Of M4 Stainless Steel Countersunk Screws, Stainless Steel Countersunk Coach Screws, Stainless Steel Countersunk Socket Screws In Mumbai, India
Stainless Steel Countersunk Screws is a type of fastener that is sits as close to the surface of the material it occupies. Typically, Stainless Steel Countersunk Wood Screws are used in such a way that they can be covered easily with either a screw cap or piece of wood. Other applications of the M4 Stainless Steel Countersunk Screws include places where there is a need for the fastener that does not protrude so other objects can rest upon it stably. Similarly, the Stainless Steel Countersunk Coach Screws used to fasten to another object.
The 6mm Stainless Steel Countersunk Screws have a typical angle head which could be 82 degrees, but can vary depending on the application. Stainless Steel Countersunk Machine Screws are used to hold parts together in machines including industrial, engines and electronic equipment’s.
Used in applications involving timber and steel substrates, Stainless Steel Countersunk Tek Screws are used to fix the substrate to a metal minus the pre-drill requirement. Stainless Steel Countersunk Concrete Screws are generally seen in applications that involve being anchored into brick, concrete or blocks. Stainless Steel Countersunk Socket Screws tap threads in to a pre-existing drilled hole into either a brick, block or concrete. We are one of the authorised dealers, suppliers and SS countersunk screws manufacturer in India.
Stainless Steel Countersunk Screw Dimension
| Stainless Steel Screw standard | ISO 14583 |
|---|---|
| Grade | 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Countersunk Screws |
| Stainless Steel counter sunk screws standard | ISO 10642 |
| British standards | BS 57 |
| Length | 3 mm to 200 mm |
| Stainless Steel Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | ISO 14585C ~DIN 7981C DIN 7973C ~ISO 1483 DIN 7983C ~ISO 7051 ISO 4762, ISO 2009, ISO 7050, ISO 14587, ISO 14587, ISO 14584, ISO 14582 ANSI B18.3.1M ASME B18.6.3 GB/T5782, GB/T5783, GB5783 DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute |
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Stainless Steel Countersunk Screws Size | Cold Froging : M2-M24 Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg Stainless Steel Countersunk Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Type | Pan/ Round/ Oval/ countersunk/ Truss head |
| Head | Pan head, flat head, oval head, hex head, phillips head |
| Finishing: | Zinc (yellow, white, blue, black), black oxide,Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | European Origin of Stainless Steel Countersunk Screws are Western European. However projects with eastern origin are possible on request. |
| Surface Coating: | Ptfe Coated Countersunk Screws Hot Dipped Galvanizing Countersunk Screws Phosphate Countersunk Screws Teflon Countersunk Screws Xylon Countersunk Screws Zinc Phosphate Countersunk Screws Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium Countersunk Screws All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment | Passivation Polish Anodizing Sand blasting Black oxide coating Heat-disposing Rust preventive oil Hot dip galvanized Shoulder Bolts Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver) |
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| Stainless Steel Countersunk Screws Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? | Best Price in India and compare to China Professional technical team High precision threads Strong production line Manifold Pipe Solution Inc. will be your reliable partner |
| MOQ | 5 pieces |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1, Tensile testing to ISO 898-1 Nut proof load testing to ISO 898-2 Suitability for preloading to EN 14399-2 Suitability test for calibrated preload to EN 14399-10 Charpy Impact testing in accordance with ISO 148-1 Hardness testing to ISO 6508-1 Tri-Roll Thread Comparators Calibrated gauges and tools |
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | Paypal, T/T,Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material | Stainless Steel Countersunk Screws: SUS201, SUS304, SUS316, SUS410 Brass Countersunk Screws: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40) Bronze Countersunk Screws: C51000, C52100, C54400 etc Aluminum Countersunk Screws: Al6061, Al6063 etc Aluminum Alloy Countersunk Screws: Al6061, Al6063 etc Titanium and Titanium Alloy Countersunk Screws: TAD, TA1-TA8, TB2, TC1-TC10 Alloy steel Countersunk Screws: SCM435, C10B21, C10B33 |
| Stainless Steel Countersunk Screws dealers & distributors are located in | Bogota, , Calgary, Dhabi, Kolkata, Jamshedpur, Janeiro, Howrah, Kuwait Gujarat, Dammam, Coimbatore, Courbevoie, Gurgaon, Vadodara, Ahvaz, Sydney, New India, Mexico Istanbul, Abu Lagos, London, Santiago, Nagpur, Muscat, Caracas, Perth, Rajkot, Delhi, Mumbai, Port-of-Spain, Noida, Melbourne, Ludhiana, Khobar, Bengaluru, Montreal, Chennai, Ernakulam, Baroda, Ludhiana, Indore, Hyderabad, Gimhae-si, Manama, Tau, Ahmedabad, Tehran, Riyadh, Ranchi, Thiruvananthapuram, Pimpri-Chinchwad, Karachi, Kanpur, Ankara, Bangalore, Surat, |
| Uses & application | Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry |
India’s Largest Manufacturer Of Stainless Steel Countersunk Tek Screws & Concrete Screws, 6mm Stainless Steel Countersunk Screws In Mumbai, India

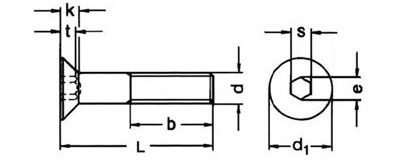

| Nominal size | Body Dia | Thread Pitch | Hex Socket Size | Max Cone Dia | Head Dia | Head Height | Soc. length | ||
|---|---|---|---|---|---|---|---|---|---|
| D(max) | D(min) | J | A1 | A_max | A_Min | H | K | ||
| M3 | 3.00 | 2.86 | 0.5 | 2,0 | 6,72 | 6,00 | 5,82 | 1,86 | 1,05 |
| M4 | 4.00 | 3.82 | 0.70 | 2,5 | 8,96 | 8,00 | 7,78 | 2,48 | 1,49 |
| M5 | 5.00 | 4.82 | 0.8 | 3,0 | 11,2 | 10,00 | 9,78 | 3,1 | 1,86 |
| M6 | 6.00 | 5.82 | 1.0 | 4,0 | 13,44 | 12,00 | 11,75 | 3,72 | 2,16 |
| M8 | 8.00 | 7.78 | 1.25 | 5,0 | 17,92 | 16,00 | 15,73 | 4,96 | 2,85 |
| M10 | 10.00 | 9.78 | 1.5 | 6,0 | 22,4 | 20,00 | 19,67 | 6,2 | 3,60 |
| M12 | 12.00 | 11.73 | 1.75 | 8,0 | 26,88 | 24,00 | 23,67 | 7,44 | 4,35 |
| M16 | 16.00 | 15.73 | 2.0 | 10,0 | 33,6 | 32,00 | 29,67 | 8,8 | 4,89 |
| M20 | 20.00 | 19.67 | 2.5 | 10,0 | 40,32 | 40,00 | 35,61 | 10,16 | 5,49 |
| LENGTHS | #2 | #3 | #4 | #5 | #6 | #8 | #10 | #12 | 1/4″ | 5/16″ | 3/8″ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8 | 0.40 | 0.55 | 0.70 | 1.1 | 1.4 | ||||||
| 3/16 | 0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | ||||
| 1/4 | 0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | ||
| 5/16 | 0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | |
| 3/8 | 0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
| 7/16 | 0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
| 1/2 | 0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
| 9/16 | 0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
| 5/8 | 1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
| 3/4 | 1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
| 7/8 | 1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
| 1″ | 1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
| 1-1/8″ | 1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
| 1-1/4″ | 1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
| 1-1/2″ | 1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
| 1-3/4″ | 2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
| 2″ | 2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
| 2-1/4″ | 2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
| 2-1/2″ | 2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
| 2-3/4″ | 3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
| 3″ | 3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
| * Weights above are approximate and are based on pan head machine screws | |||||||||||
| Threaded Rod Thread |
Threaded Rod Weight per metre |
Threaded Rod Strength | |||
|---|---|---|---|---|---|
| Threaded Rod Class 70 | Threaded Rod Class 80 | ||||
| 0.2% proof | UTS | 0.2% proof | UTS | ||
| Kg/m | kN | kN | kN | kN | |
| M12 | 0.72 | 41.0 | 64.0 | 54.0 | 73.0 |
| M16 | 1.31 | 70.7 | 109.9 | 94.2 | 125.6 |
| M20 | 2.05 | 110.3 | 171.5 | 147.0 | 196.0 |
| M24 | 2.96 | 158.9 | 247.1 | 211.8 | 282.4 |
| M27 | 3.83 | 206.6 | 321.3 | 275.4 | 367.2 |
| M30 | 4.70 | 252.6 | 392.7 | 336.6 | 448.8 |
| M33 | 5.78 | 312.3 | 485.8 | 416.4 | 555.2 |
| M36 | 6.84 | 367.7 | 571.9 | 490.2 | 653.6 |
| M39 | 8.14 | 439.2 | 683.2 | 585.6 | 780.8 |
| M42 | 9.38 | 504.5 | 784.7 | 672.6 | 896.6 |
| M45 | 10.90 | 587.7 | 914.2 | 783.6 | 1044.8 |
| M48 | 12.32 | 662.9 | 1031.1 | 883.8 | 1178.4 |
| M52 | 14.65 | 791.1 | 1230.6 | 1054.8 | 1406.4 |
Buy CSK Screw, Stainless Steel Self Tapping Countersunk Screws, Self Drilling Countersunk Screws At Factory Price In India
