Hex Head Cap Screw

Screws

Hex Head Cap Screw

Stainless Steel Hex Head Screw
Slotted Hex Head Screw
SS Hex Head Screws
Stainless Steel Hex Head Cap Screw
316 Stainless Steel Hex Head Screws
Stainless Steel Hex Head Wood Screws

Supplies A Full Range Of SS Hex Head Screws, Stainless Steel Hex Head Wood Screws, Stainless Steel Hex Head Self Tapping Screws At Factory Price In India. Carries A Complete Line Of 316 Stainless Steel Hex Head Screws, Stainless Steel Hex Head Cap Screws, Stainless Steel Hex Head Self Drilling Screws In Mumbai, India

One of the most common choice to make hex screws is from stainless steel. The benefits of using ss hex head screws include its good resistance to corrosion. Since stainless steel hex head wood screws can be made from 316 grade stainless steel, their resistance to general corrosion, pitting etc is high due to the content of chromium and molybdenum in their alloy.

Although 316 stainless steel hex head screws have similar properties to those screws produced from 304 grade stainless steel, the corrosion resistance is higher. Additionally, these 316 stainless steel hex head screws do not require any coating.

Application of the 316 grade stainless steel hex head cap screws include their use in desalination equipment’s, marine or saline equipment’s and chemical processing instruments. As these instruments are in contact with corrosive media, the stainless steel hex head machine screws are required to be constructed in materials which can resist corrosion at ambient, low as well as elevated temperatures. Therefore stainless steel hex head tek screws are made from 316 grade stainless steel.

Another area which sees the use of stainless steel hex washer head screws is the manufacture of medical surgical instruments and pharmaceutical industries. Stainless steel hex head lag screws are non-reactive to chemicals thereby making them valuable in these industries. We are stainless steel hex head screws manufacturers in India.

Stainless Steel Hex Head Screws Material Grades

  • A4 Hex Cap Screws
  • 310 Stainless Steel Hex Cap Screws
  • A193 B8T (321) Hex Cap Screws
  • 316 Stainless Steel Hex Cap Screws
  • 304H Stainless Steel Hex Cap Screws
  • 18-8 Stainless Steel Hex Cap Screws
  • 4.8 Hex Cap Screws
  • 317L Stainless Steel Hex Cap Screws
  • 316L Stainless Steel Hex Cap Screws
  • 347 Stainless Steel Hex Cap Screws
  • 304 Stainless Steel Hex Cap Screws
  • 18-8 Stainless Steel Hex Cap Screws
  • 17-4 PH Hex Cap Screws
  • A4-70 Hex Cap Screws
  • 304L Stainless Steel Hex Cap Screws
  • 316H Stainless Steel Hex Cap Screws
  • A193 B6 (410) Hex Cap Screws
  • 904L Stainless Steel Hex Cap Screws
  • A4-80 Hex Cap Screws
  • Duplex 2205 Hex Cap Screws
  • 410 Stainless Steel Hex Cap Screws
  • A2 Hex Cap Screws
  • A2-70 Hex Cap Screws
  • 316 Stainless Hex Cap Screws
  • 8.8 Hex Cap Screws
  • A193 B8C (347) Hex Cap Screws
  • 321 Stainless Steel Hex Cap Screws
  • 317 Stainless Steel Hex Cap Screws

Screws as per British Specifications

  • BS 450 Cheese Head Machine Screw
  • BS 450 Countersunk Head Machine Screw
  • BS 450 Pan Head Machine Screw
  • BS 1083 Hex Head Cap Screw
  • BS 2470 Socket Head Cap Screw
  • BS 2470 Cup Point Socket Set Screw
  • BS 2470 Flat Head Socket Cap Screw
  • BS 450 Fillister Head Machine Screw
  • BS 450 Flat Head Machine Screw
  • BS 450 Truss Head Machine Screw
  • BS 1083 Socket Set Screw
  • BS 2470 Button Head Socket Cap Screw
  • BS 2470 Knurled Cup Point Socket Set Screw
  • BS 2470 Flat Point Socket Set Screw

Hex Head Screw Application

  • Stainless Steel Hex Head Screw uses in Gas Processing
  • Stainless Steel Hex Head Screw uses in Heat Exchangers
  • Stainless Steel Hex Head Screw uses in Aircraft Exhaust Manifolds
  • Stainless Steel Hex Head Screw uses in Specialty Chemicals
  • Stainless Steel Hex Head Screw uses in Pharmaceuticals
  • Stainless Steel Hex Head Screw uses in Off-Shore Oil Drilling Companies
  • Stainless Steel Hex Head Screw uses in Pharmaceutical Equipment
  • Stainless Steel Hex Head Screw uses in Sea Water Equipment
  • Stainless Steel Hex Head Screw uses in Petrochemicals
  • Stainless Steel Hex Head Screw uses in Spiral Welded tube for burner pipes and flues
  • Stainless Steel Hex Head Screw uses in Power Generation

Stainless Steel Hex Head Screw Specification

Stainless Steel Screw standard ISO 14583
DIN Standard B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard UNC, UNF, UNEF, UNS, NPT, NPTF
Stainless Steel Hex Head Screws standard ISO 10642
Grade 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Hex Head Screws
British standards BS 57
Stainless Steel Hex Head Screws Size Cold Froging : M2-M24
Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg
Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg


Stainless Steel Hex Head Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length 3 mm to 200 mm
Stainless Steel Threads: METRIC, BSW, BSF, UNC, UNF or as required
Standard: ISO 14585C ~DIN 7981C
DIN 7973C ~ISO 1483
DIN 7983C ~ISO 7051
ISO 4762, ISO 2009, ISO 7050, ISO 14587, ISO 14587, ISO 14584, ISO 14582
ANSI B18.3.1M
ASME B18.6.3
GB/T5782, GB/T5783, GB5783

DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute
Dimensions ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Tolerance +/-0.01mm to +/-0.05mm
Head drive: Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Type Pan/ Round/ Oval/ countersunk/ Truss head
Head Pan head, flat head, oval head, hex head, phillips head
Finishing: Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated
Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish Per ASTM A380/A380M
Production process Wire DraHex, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region: Origin of Stainless Steel Hex Head Screws are Western European. However projects with eastern origin are possible on request.
Surface Coating: Ptfe Coated Hex Head Screws
Hot Dipped Galvanizing Hex Head Screws
Phosphate Hex Head Screws
Teflon Hex Head Screws
Xylon Hex Head Screws
Zinc Phosphate Hex Head Screws
Manganese Phosphate
Zinc Electro Plating (Hexavalent or Trivalent Chrome)
ZAC (Zinc Alluminium Flake Coating)
Cadmium Hex Head Screws

All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment Polish
Passivation
Anodizing
Sand blasting
Heat-disposing
Hot-dip galvanizing
Rust preventive oil
Black oxide coating
Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Hex Nuts Packing: IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us? Best Price in India and compare to China
Professional technical team
High precision threads
Strong production line
Manifold Pipe Solution Inc. will be your reliable partner
MOQ 5 pieces
Test Certificate: Manufacturer Test Certificate as per EN 10204 / 3.1,
Tensile testing to ISO 898-1
Nut proof load testing to ISO 898-2
Suitability for preloading to EN 14399-2
Suitability test for calibrated preload to EN 14399-10
Charpy Impact testing in accordance with ISO 148-1
Hardness testing to ISO 6508-1
Tri-Roll Thread Comparators
Calibrated gauges and tools
Free Samples Yes
Delivery time Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material Stainless Steel Hex Head Screws: SUS201, SUS304, SUS316, SUS410
Brass Hex Head Screws: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),
C27200CuZn37), C28000(CuZn40)
Bronze Hex Head Screws: C51000, C52100, C54400 etc
Aluminum Hex Head Screws: Al6061, Al6063 etc
Aluminum Alloy Hex Head Screws: Al6061, Al6063 etc
Titanium and Titanium Alloy Hex Head Screws: TAD, TA1-TA8, TB2, TC1-TC10
Alloy steel Hex Head Screws: SCM435, C10B21, C10B33
Stainless Steel Hex Head Screws dealers & distributors are located in Ernakulam, Ankara, Nagpur, Chennai, Manama, Gurgaon, Gimhae si, Vadodara, Istanbul, Kanpur, Ahvaz, Caracas, Gujarat, Kuwait, Dammam, Thiruvananthapuram, Santiago, Ahmedabad, Hyderabad, Jamshedpur, Indore, Howrah, , Mexico, Tehran, Ludhiana, Pimpri Chinchwad, Courbevoie, Rajkot, Bogota, Bangalore, Janeiro, Tau, Noida, Lagos, Muscat, Coimbatore, Ludhiana, Montreal, India, Baroda, London, Calgary, Melbourne, Ranchi, Bengaluru, Sydney, Karachi, Port of Spain, Khobar, Kolkata, Surat, Riyadh, Mumbai, Perth, New Delhi, Abu Dhabi
Uses & application Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry

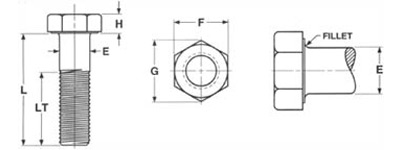

Dimensions of Stainless Steel Hex Head Screw

Nominal Thread. Hex Socket Size Body diameter and Head height Head Dia Soc. length
Size Pitch Max Min Max Min
J D /H A K
M3 0.5 2.50 3.00 2.86 5.50 5.20 1.3
M4 0.70 3.00 4.00 3.82 7.00 6.64 2.00
M5 0.8 4.00 5.00 4.82 8.50 8.14 2.70
M6 1.0 5.00 6.00 5.82 10.00 9.64 3.30
M8 1.25 6.00 8.00 7.78 13.00 12.57 4.3
M10 1.5 8.00 10.00 9.78 16.00 15.57 5.50
M12 1.75 10.00 12.00 11.73 18.00 17.57 6.60
M16 2.0 14.00 16.00 15.73 24.00 23.48 8.80
M20 2.5 17.00 20.00 19.67 30.00 29.48 10.70
M24 3.0 19.00 24.00 23.67 36.00 35.38 12.90

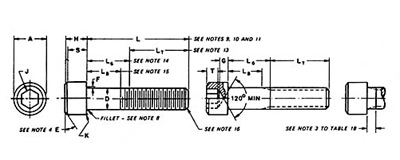

Size Chart of Stainless Steel Hex Bolt

Normal Size or
Basic Screw Diameter		 D Body Diameter A Head Diameter H Head Height S Head Side Height
Max		 J Hex Socket Side Height
nominal		 T Key Engagmt
Min		 G Wall Thkns
Min		 K Chamfer or Radius
Max
Max Min Max Min Max Min
0 0.0600 0.0600 0.0568 0.096 0.091 0.060 0.057 0.054
0.050		 0.025 0.020 0.003
1 0.0730 0.0730 0.0695 0.118 0.112 0.073 0.070 0.066 1/16 0.062 0.031 0.025 0.003
2 0.0860 0.0860 0.0822 0.140 0.134 0.086 0.083 0.077 5/64 0.078 0.038 0.029 0.003
3 0.0990 0.0990 0.0949 0.161 0.154 0.099 0.095 0.089 5/64 0.078 0.044 0.038 0.005
4 0.1120 0.1120 0.1075 0.183 0.176 0.112 0.108 0.101 3/32 0.094 0.051 0.038 0.005
5 0.1250 0.1250 0.1202 0.205 0.198 0.125 0.121 0.112 3/32 0.094 0.057 0.043 0.005
6 0.1380 0.1380 0.1329 0.226 0.218 0.138 0.134 0.124 7/64 0.109 0.064 0.047 0.005
8 0.1640 0.1640 0.1585 0.270 0.262 0.164 0.159 0.148 9/64 0.141 0.077 0.056 0.005
10 0.1900 0.1900 0.1840 0.312 0.303 0.190 0.185 0.171 5/32 0.156 0.090 0.065 0.005
1/4 0.2500 0.2500 0.2435 0.375 0.365 0.250 0.244 0.225 3/16 0.118 0.120 0.095 0.008
5/16 0.3125 0.3125 0.3053 0.469 0.457 0.312 0.306 0.281 1/4 0.250 0.151 0.119 0.008
3/8 0.3750 0.3750 0.3678 0.562 0.550 0.375 0.368 0.337 5/16 0.312 0.182 0.143 0.008
7/16 0.4375 0.4375 0.4294 0.656 0.642 0.438 0.430 0.394 3/8 0.375 0.213 0.166 0.010
1/2 0.5000 0.5000 0.4919 0.750 0.735 0.500 0.492 0.450 3/8 0.375 0.245 0.190 0.010
5/8 0.6250 0.6250 0.6163 0.938 0.921 0.625 0.616 0.562 1/2 0.500 0.307 0.238 0.010
3/4 0.7500 0.7500 0.7406 1.125 1.107 0.750 0.740 0.675 5/8 0.625 0.370 0.285 0.010
7/8 0.8750 0.8750 0.8647 1.312 1.293 0.875 0.864 0.787 3/4 0.750 0.432 0.333 0.015
1 1.0000 1.0000 0.9886 1.500 1.479 1.000 0.988 0.900 3/4 0.750 0.495 0.380 0.015
see
Nots 1		 2,15 3 4 21 6

View Stainless Steel Hex Washer Head Screws Dimensions & Weight , Stainless Steel Hex Head Machine Screws Specifications.

Buy Stainless Steel Hex Head Shoulder Screws, Stainless Steel Hex Socket Cap Screws, 316 SS Hex Head Cap Screws, Type 17 Hex Head Screws & Black Hex Head Screws At Factory Price In India
