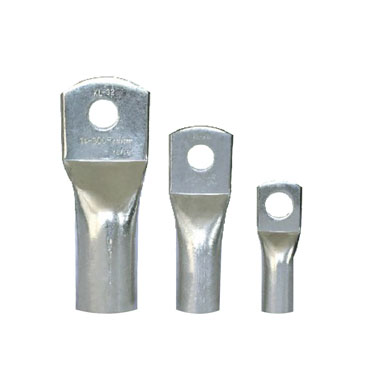

SC-Din Aluminum Cable Lug SC-Din Aluminum Cable Lug 25 to 630

SC-Din Aluminum Cable Lug SC-Din Aluminum Cable Lug 25 to 630

Technical Data


Part No.

Cable Spec.(mm²)
Dimension(mm)
D d L
SC-DIN-25 25 7 10 50
SC-DIN-35 35 8.2 12.5 55
SC-DIN-50 50 10 14.5 65
SC-DIN-70 70 11.5 16.5 68
SC-DIN-95 95 13.5 19 78
SC-DIN-120 120 15.5 21 86
SC-DIN-150 150 17 23.5 94
SC-DIN-185 185 19 25.5 98
SC-DIN-240 240 21.5 29 108
SC-DIN-300 300 24.5 32 119
SC-DIN-400 400 27.5 38.5 140
SC-DIN-500 500 31 42 150
SC-DIN-630 630 34.5 44 160
