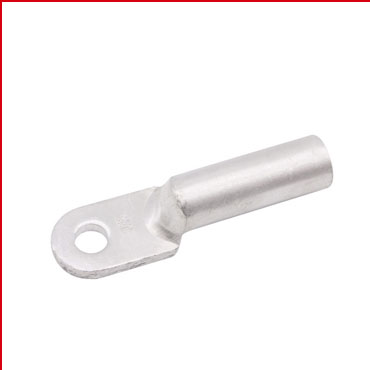

DL Aluminum Cable Lug DL Aluminum Cable Lug 16 to 500

DL Aluminum Cable Lug DL Aluminum Cable Lug 16 to 500

Technical Data


Model
Dimension(mm)
Dia D d L W S
DL-16 8.4 10 5.5 70 16 3
DL-25 8.4 12 7 75 18 3.5
DL-35 10.5 14 8.5 85 20 3.5
DL-50 10.5 16 9.5 90 23 4
DL-50 10.5 16 9.5 90 23 4
DL-70 12.5 18 12 102 26 4.5
DL-95 12.5 21 13 112 28 5
DL-120 14.5 23 15 120 30 5.5
DL-150 14.5 25 16 126 34 6
DL-185 16.5 27 18 133 37 6.5
DL-240 16.5 30 20 140 40 7.5
DL-300 21 34 23 165 45 8.5
DL-400 21 38 26 170 52 9.5
DL-500 21 42 29 190 60 10
