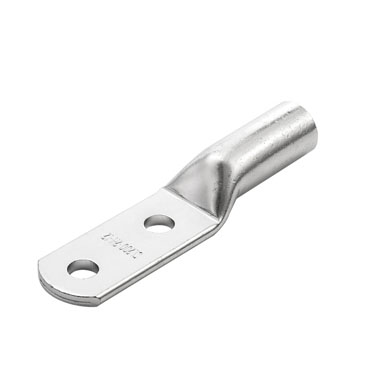

CL-2H Double Holes Aluminum Cable Lug CL-2H Double Holes Aluminum Cable Lug

CL-2H Double Holes Aluminum Cable Lug CL-2H Double Holes Aluminum Cable Lug

Technical Data


Part No.		 Dimension(mm)
Φd2 B L ΦD Φd E H
CL14-2H-6 6.4 13 117.5 8.8 5.8 28.5 45
CL22-2H-8 8.4 16 119.2 11.3 7.7
CL38-2H-10 10.5 18.3 120 12.4 9.8 31.7
CL38-2H-12 13 18.3 120
CL60-2H-10 10.5 20.5 130 14 11 40
CL60-2H-12 13 20.5 130
CL70-2H-10 10.5 21.4 130 15 12
CL70-2H-12 13 21.4 130
CL80-2H--12 13 23.2 130 16 13
CL100-2H-12 13 26 132 18 14 42
CL125-2H-12 13 29 135 20 16
CL150-2H-12 13 31 150 22 17 50
CL180-2H-12 13 33 150 23 18.2
CL200-2H-12 13 37 150 26 20 52.5
CL250-2H-12 13 40 150 28 22 50
CL325-2H-12 13 46 180 32 25 68
CL400-2H-12 13 54 180 37 30 60
CL500-2H-12 13 57.5 180 40 31
B-CL14-2H-6 6.4 13 117.5 8.3 5.8 28.5
B-CL22-2H-8 8.4 16 119.2 10.7 7.7
B-CL38-2H-10 10.5 17.5 120 11.9 9.8 28.5
B-CL38-2H-12 13 17.5 120
B-CL60-2H-10 10.5 19.5 120 13.5 11 40
B-CL60-2H-12 13 19.5 130
B-CL70-2H-10 10.5 21.4 130 14.5 12
B-CL70-2H-12 13 21.4 130
B-CL80-2H-12 13 23.2 130 15.5 13
B-CL100-2H-12 13 26 132 17.3 14 42
B-CL125-2H-12 13 28 135 19.3 16 42
B-CL150-2H-12 13 31 150 21.1 17 50
B-CL180-2H-12 13 33 150 22.1 18.2
B-CL200-2H-12 13 36 150 24.9 20
B-CL250-2H-12 13 39 150 26.9 22
B-CL325-2H-12 13 45 180 30.7 25 68
B-CL400-2H-12 13 54 180 35.7 30 60
B-CL500-2H-12 13 56 180 38.4 31
