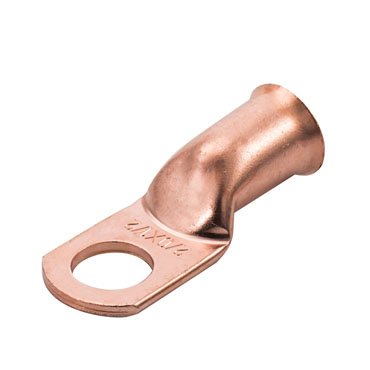

AWG Copper Cable Lug AWG Copper Cable Lug

Item No.	Dimension(mm)
	ΦE	ΦD	Φd	ΦW	ΦB	L
8#10	5.1	7.1	4.8	11.8	13	33.3
8*1/4	6.8	7.1	4.8	11.8	13	33.3
8*5/16	8.3	7.1	4.8	11.8	13	33.3
8*3/8	10.4	7.1	4.8	14.5	13	33.3
8*1/2	13.1	7.1	4.8	17	13	33.3
6#10	5.1	8.1	5.9	11.8	15	37.3
6*1/4	6.8	8.1	5.9	13.7	15	37.3
6*5/16	8.3	8.1	5.9	13.7	15	37.3
6*3/8	10.4	8.1	5.9	13.7	15	37.3
6*1/2	13.1	8.1	5.9	17	14	37.3
4*1/4	6.8	9.5	7.3	13.8	15.5	38.9
4*5/16	8.3	9.5	7.3	13.8	15.5	38.9
4*3/8	10.4	9.5	7.3	14.5	15.5	38.9
4*1/2	13.1	9.5	7.3	17	15	38.9
2*1/4	6.8	11.1	8.5	16.5	16	41.1
2*5/16	8.3	11.1	8.5	16.5	16	41.1
2*3/8	10.4	11.1	8.5	16.5	16	41.1
1*1/4	6.8	11.7	9.1	16.4	16	43.6
1*5/16	8.3	11.7	9.1	16.4	16	43.6
1*3/8	10.4	11.7	9.1	17.1	16	43.6
1*1/2	13.1	11.7	9.1	19.1	16	43.6
1/0 1/4	6.8	13	10.4	18.4	19	46.8
1/0 5/16	8.3	13	10.4	18.4	19	46.8
1/0 3/8	10.4	13	10.4	18.4	19	46.8
1/0 1/2	13.1	13	10.4	21	19	46.8
2/0 1/4	6.8	14.2	11.7	21	22	52.4
2/0 5/16	8.3	14.2	11.7	21	22	52.4
2/0 3/8	10.4	14.2	11.7	21	22	52.4
2/0 1/2	13.1	14.2	11.7	21	21	52.4
3/0 5/16	8.3	15.7	13	23.1	22.5	55.9
3/0 3/8	10.4	15.7	13	23.1	22.5	55.9
3/0 1/2	13.1	15.7	13	23.1	22.5	55.9
4/0 5/16	8.3	17.2	14.2	25.8	24	60.5
4/0 3/8	10.4	17.2	14.2	25.8	24	60.5
4/0 1/2	13.1	17.2	14.2	25.8	24	60.5

Type
Aluminum full length L1 (mm)
Outer full length L2 (mm) Dimensions(mm)
Color
Tool d1 d2 d3 MJPB 16-6 48 70 5.2 3.3 19 Brown/Blue E140 MJPB 16-10 48 70 5.2 4.3 19 Green/Blue E140 MJPB 16-16 48 70 5.2 5.2 19 Blue/Blue E140 MJPB 25-16 48 70 6.4 5.2 19 Blue/Orange E140 MJPB 25-25 48 70 6.4 6.4 19 Orange E140 MJPB 35-35 48 70 7.9 7.9 19 Red E140
