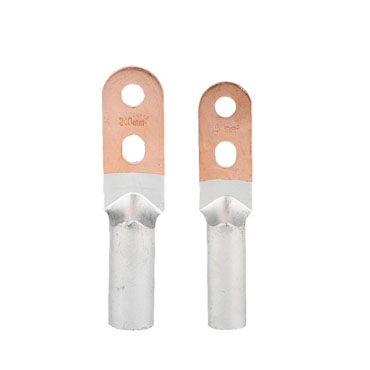

DTL-S Double Holes Bimetal Cable Lug DTL-S Double Holes

DTL-S Double Holes Bimetal Cable Lug DTL-S Double Holes

Technical Data


Model		 Dimension(mm)
Dia D d L L1 L2 L3 W S
DTL-16S 8.4 10 5.5 90 32 45 20 18 3
DTL-25S 8.4 12 7 93.5 38 44 20 18 3.2
DTL-35S 10.5 14 8.5 104 42 48.5 20 20 3.6
DTL-50S 10.5 16 9.5 112 46 50 20 23 4
DTL-70S 12.5 18 12 125 47 59 25 26 4.5
DTL-95S 12.5 21 13 136 53 60 25 28 4.8
DTL-120S 14.5 23 15 145 55 69 30 30 5.5
DTL-150S 14.5 25 16 150 55 70 30 34 6
DTL-185S 14.5 27 18 162 62 76 35 37 6.5
DTL-240S 14.5 30 20 170 65 78 35 40 7
DTL-300S 16.5 34 23 190 72 87 40 45 8.5
DTL-400S 16.5 38 26 195 75 87 40 50 8.5
DTL-500S 21 42 29.5 225 80 110 45 60 9.5
