Stainless Steel Hex Bolt
Stainless Steel Hex Head Bolt
Stainless Steel Hex Head Shoulder Bolt

Supplies A Full Range Of Stainless Steel Heavy Hex Bolts, Stainless Steel Hex Cap Screw, 316 SS Hex Bolts At Factory Price In India. Carries A Complete Line Of Stainless Steel Bolts Hex Head, SS 304 Hex Bolts, Stainless Steel Flanged Hex Bolts, Stainless Steel High Tensile Hex Bolts In Mumbai, India

Stainless Steel Metric Hex Bolts are typically designed to be driven with either a wrench or a socket. One can learn the metric size of the bolt by the first number of the bolt which refers to its nominal outer diameter. For instance the Stainless Steel M6 Hex Bolts indicates a 6.0-mm diameter hole. Stainless Steel Hex Head Bolts or Stainless Steel Hex Cap Screw is a type of a machined bolt that is used with a nut or in a tapped hole.

304 Stainless Steel Hex Bolts get their name from the grade of stainless steel and the shape of the fastener. And the bolts are made from 304 grade stainless steel, which besides being an economical grade of stainless steel is also versatile and has good corrosion resistance properties. The head of the Stainless Steel Bolts Hex Head bolts is Hexagonal in shape, labelled as Hex in short.Structurally, the Stainless Steel Flanged Hex Bolts, have a hexagonal head with a circular flange at the base of the head which acts as a washer to help distribute the load.one of the largest Stainless Steel Hex Bolt Manufacturers.

As compared to standard hex bolts, Stainless Steel Heavy Hex Bolts have shorter threads as they are intended for structural connections and are designed to be used in applications that involve steel to steel connections.we are oldest Hex Bolts Manufacturers

Stainless Steel Hex Bolt Material Grades

  • A4 Hex Bolts
  • 310 Stainless Steel Hex Bolts
  • A193 B8T (321) Hex Bolts
  • 316 Stainless Steel Hex Bolts
  • 304H Stainless Steel Hex Bolts
  • 18-8 Stainless Steel Hex Bolts
  • 4.8 Hex Bolts
  • 317L Stainless Steel Hex Bolts
  • 316L Stainless Steel Hex Bolts
  • 347 Stainless Steel Hex Bolts
  • 304 Stainless Steel Hex Bolts
  • 18-8 Stainless Steel Hex Bolts
  • 17-4 PH Hex Bolts
  • A4-70 Hex Bolts
  • Stainless Steel Hex Bolts And Nuts
  • Stainless Steel Hex Bolts Metric
  • Stainless Steel Hex Head Flange Bolts
  • 304L Stainless Steel Hex Bolts
  • 316H Stainless Steel Hex Bolts
  • A193 B6 (410) Hex Bolts
  • 904L Stainless Steel Hex Bolts
  • A4-80 Hex Bolts
  • Duplex 2205 Hex Bolts
  • 410 Stainless Steel Hex Bolts
  • A2 Hex Bolts
  • A2-70 Hex Bolts
  • 316 Stainless Hex Bolts
  • 8.8 Hex Bolts
  • A193 B8C (347) Hex Bolts
  • 321 Stainless Steel Hex Bolts
  • 317 Stainless Steel Hex Bolts
  • Stainless Steel Hex Flange Bolts
  • Black Stainless Steel Hex Bolts
  • SS Hex Head Bolts
  • 310 SS Hex Bolts

Stainless Steel Hex Bolts Specification

Product name Stainless Steel Hex Bolt
Standard DIN931, ISO 4017, DIN, GB5783, ANSI, ASTM, EN, JIS, AS
ISO – International Organization for Standardization ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards
DIN Standard B.S. DIN931 DIN933 DIN912 DIN934 DIN6923 DIN603
Place of Origin India
Hex Bolt Surface treatment Passivation /plain
Stainless Steel Hex Bolt Finishing Hop Dip Galvanized (HDG) phosphorization, Zinc Plated (Yellow, White, Blue, Black), Geomet, Black Oxide, anodization, Dacroment, Zinc-Nickel plated, Nickel plated, Tin Plated, Brass Plated, Copper Plated, Black Plated, Salt fog test, Gold Plated
Size of Stainless Steel Hex Bolt M2 – M100
Diameter of Stainless Steel Hex Bolt M3-M60
Length of Stainless Steel Hex Bolt 6mm-500mm
Thread Types of Bolt Unified national fine (UNF),Unified national coarse (UNC), UNJC and UNJF threads, Unified national extra fine (UNEF), UNK threads, UNR threads, Constant-pitch threads.
Hex Bolt Head Square, Hex, Hex flange, Round, T-head , Flat & Triangular etc
Hex Bolt Neck type Square, Hex, Oval, Triangular & Knurled etc
Hex Bolt Drive type Slotted, Phil, Torx , Hex socket, & square slot etc
Application of Stainless Steel Hex Bolt Nuclear power, Wind tower, Automotive industry, Railway, Electronic, Construction industry,
Hex Bolt Dimensions ASME B18.6.3 *Exception: screws 6 inches and shorter are fully threaded.
Drive Style Type I
Material of Stainless Steel Hex Bolt stainless steel ss 304/ SS316 A2/A4, 18-8 Stainless Steel, SS303, SS201, SS316, SS304, SS904L, SS316L, A4-70; A2-70; A4-80
Thread Requirements UNC & UNF, ASME B1.1, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge)
Finish Per ASTM A380/A380M
Production technology Cold Forged
Manufacturing Process Cold Heading, Wire Drawing, Heat Treatment, Insert tapping, Inspection, Packing, Surface Plating
Surface treatment of Stainless steel Hex Bolt Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Hot-dip galvanizing
Rust preventive oil
Sand blasting
Passivation
Anodizing
Black oxide coating
Polish
Heat-disposing
MOQ 10 pieces
Delivery time custom product will according to special requirement, Regular product is about 7-15 days
Others OEM, ODM, ±0.03MM tolerance
Coatings Cadmium, Black Oxide, Teflon, Galvanized, Zinc, Xylan, Others Upon Request
Tolerance of stainless steel Hex Bolt +/-0.01mm to +/-0.05mm
Samples Yes
Payment Terms Paypal, T/T,Western Union, L/C or Trade Assurance 30% deposit & balance before shipping

India’s Largest Manufacturer Of Stainless Steel Hex Head Bolts, Stainless Steel M6 Hex Bolts, Hex Bolts Manufacturers In Mumbai, India

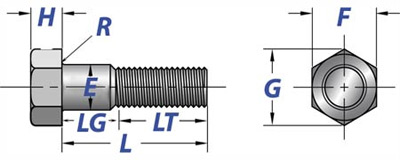

Dimensions Of Stainless Steel Heavy Hex Bolts

Diameter (D) Body Diameter (D) Across the Flats (F) Across the Corners © Head Height (H) Thread Lengths (T)
MAX MIN MAX MIN MAX MIN MAX MIN < 6” >6”
1/2 0.515 0.482 0.875 0.85 1.01 0.969 0.364 0.302 1.25 1.5
5/8 0.642 0.605 1.062 1.031 1.227 1.175 0.444 0.378 1.5 1.75
3/4 0.768 0.729 1.25 1.212 1.443 1.383 0.524 0.455 1.75 2
7/8 0.895 0.852 1.438 1.394 1.66 1.589 0.604 0.531 2 2.25
1 1.022 0.976 1.625 1.575 1.876 1.796 0.7 0.591 2.25 2.5
1 1/8 1.149 1.098 1.812 1.756 2.093 2.002 0.78 0.658 2.5 2.75
1 1/4 1.277 1.223 2 1.938 2.309 2.209 0.876 0.749 2.75 3
1 3/8 1.404 1.345 2.188 2.119 2.526 2.416 0.94 0.81 3 3.25
1 1/2 1.531 1.47 2.375 2.3 2.742 2.622 1.036 0.902 3.25 3.5
1 3/4 1.785 1.716 2.75 2.662 3.175 3.035 1.196 1.054 3.75 4
2 2.039 1.964 3.125 3.025 3.608 3.449 1.388 1.175 4.25 4.5
2 1/4 2.305 2.214 3.5 3.388 4.041 3.862 1.548 1.327 4.75 5
2 1/2 2.559 2.461 3.875 3.75 4.474 4.275 1.708 1.479 5.25 5.5
2 3/4 2.827 2.711 4.25 4.112 4.907 4.688 1.869 1.632 5.75 6
3 3.081 2.961 4.625 4.475 5.34 5.102 2.06 1.815 6.25 6.

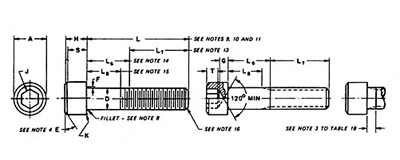

Size Chart of Stainless Steel Hex Bolt

Normal Size or
Basic Screw Diameter		 D Body Diameter A Head Diameter H Head Height S Head Side Height
Max		 J Hex Socket Side Height
nominal		 T Key Engagmt
Min		 G Wall Thkns
Min		 K Chamfer or Radius
Max
Max Min Max Min Max Min
0 0.0600 0.0600 0.0568 0.096 0.091 0.060 0.057 0.054
0.050		 0.025 0.020 0.003
1 0.0730 0.0730 0.0695 0.118 0.112 0.073 0.070 0.066 1/16 0.062 0.031 0.025 0.003
2 0.0860 0.0860 0.0822 0.140 0.134 0.086 0.083 0.077 5/64 0.078 0.038 0.029 0.003
3 0.0990 0.0990 0.0949 0.161 0.154 0.099 0.095 0.089 5/64 0.078 0.044 0.038 0.005
4 0.1120 0.1120 0.1075 0.183 0.176 0.112 0.108 0.101 3/32 0.094 0.051 0.038 0.005
5 0.1250 0.1250 0.1202 0.205 0.198 0.125 0.121 0.112 3/32 0.094 0.057 0.043 0.005
6 0.1380 0.1380 0.1329 0.226 0.218 0.138 0.134 0.124 7/64 0.109 0.064 0.047 0.005
8 0.1640 0.1640 0.1585 0.270 0.262 0.164 0.159 0.148 9/64 0.141 0.077 0.056 0.005
10 0.1900 0.1900 0.1840 0.312 0.303 0.190 0.185 0.171 5/32 0.156 0.090 0.065 0.005
1/4 0.2500 0.2500 0.2435 0.375 0.365 0.250 0.244 0.225 3/16 0.118 0.120 0.095 0.008
5/16 0.3125 0.3125 0.3053 0.469 0.457 0.312 0.306 0.281 1/4 0.250 0.151 0.119 0.008
3/8 0.3750 0.3750 0.3678 0.562 0.550 0.375 0.368 0.337 5/16 0.312 0.182 0.143 0.008
7/16 0.4375 0.4375 0.4294 0.656 0.642 0.438 0.430 0.394 3/8 0.375 0.213 0.166 0.010
1/2 0.5000 0.5000 0.4919 0.750 0.735 0.500 0.492 0.450 3/8 0.375 0.245 0.190 0.010
5/8 0.6250 0.6250 0.6163 0.938 0.921 0.625 0.616 0.562 1/2 0.500 0.307 0.238 0.010
3/4 0.7500 0.7500 0.7406 1.125 1.107 0.750 0.740 0.675 5/8 0.625 0.370 0.285 0.010
7/8 0.8750 0.8750 0.8647 1.312 1.293 0.875 0.864 0.787 3/4 0.750 0.432 0.333 0.015
1 1.0000 1.0000 0.9886 1.500 1.479 1.000 0.988 0.900 3/4 0.750 0.495 0.380 0.015
see
Nots 1		 2,15 3 4 21 6

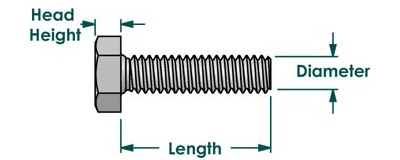

Stainless Steel Hex Bolts Dimensions

NOMINAL SIZE (D) BODY DIAMETER HEAD
THICKNEASTM A193		 ACROASTM A193 THE FLATS ACROASTM A193 CORNERS
D (MAX) D (MIN) H (MAX) H (MIN) F (MAX) F (MIN) C (MAX) C (MIN)
m10 10.00 9.78 6.63 6.17 17.00 15.73 18.48 17.77
m12 12.00 11.73 7.76 4.24 19.00 17.73 20.78 20.03
m14 14.00 13.73 9.09 8.51 22.00 20.67 24.25 23.35
m16 16.00 15.73 10.32 9.68 24.00 23.67 27.71 26.75
m20 20.00 19.67 12.88 12.12 30.00 29.16 34.64 32.95
m24 24.00 23.67 15.44 14.56 36.00 35.00 41.57 39.55
m30 30.00 29.67 19.48 17.92 46.00 45.00 53.12 50.85
m36 36.00 35.61 23.38 21.63 55.00 53.80 63.51 60.79
m42 42.00 41.38 26.97 25.03 65.00 62.90 75.06 71.71
m48 48.00 47.38 31.07 28.93 75.00 72.60 86.60 82.76
m56 56.00 55.26 36.2 33.80 85.00 82.20 98.15 93.71
m64 64.00 63.26 41.32 38.68 95.00 91.80 109.70 104.65
m72 72.00 71.26 46.45 43.55 105.00 101.40 121.24 115.60
m80 80.00 79.26 51.58 48.42 115.00 111.00 132.72 126.54
m90 90.00 89.13 57.74 54.26 130.00 125.50 150.11 143.07
m100 90.00 99.13 63.9 60.10 145.00 140.00 167.43 159.60

View Stainless Steel Hex Tap Bolts Dimensions & Weight, Stainless Steel Hex Head Shoulder Bolts Specifications
