Supplies A Full Range Of Din 1665 Flange Bolt, 12-Point Flange Bolts Stainless Steel,Stainless Steel Flange Head Bolts At Factory Price In India. Carries A Complete Line Of Stainless Steel Flange Bolt Material, Stainless Steel Hex Flange Bolts, Hex Flange Bolt Din 6921, Hex Flange Bolt ISO 4162 In Mumbai, India
Flange bolts, as compared to regular bolts contain a circular washer like disk attached on the lower part of the head of the bolt. This circular flange in the Stainless Steel Flange Bolts eliminates the need to add another washer in the assembly.12 Point Flange Bolts Stainless Steel is used as a specialty fastener in the oil and gas industry due to the recessing head, which is not visible when the ends of the bolts are clamped together.
Often, Serrated Stainless Steel Flange Bolt Material is used in various applications including its use in vehicle frames, especially in trucks. These serrated Stainless Steel Flange Head Bolts dig into the surface thereby reducing the fastener from becoming loose. Because the Stainless Steel Hex Head Flange Bolts features a nozzle, it reduces the time and hence is resultant in speeding up the assembly by eliminating the washer. Those Stainless Steel Hex Flange Bolts that do not have serrations are known as frame bolts.
As opposed to a standard hex screw, Stainless Steel Metric Flange Head Bolts render four times the bearing area. This bearing area ensures smooth distribution of securing pressure. Click here to know the price for the Stainless Steel Flange Head Bolts. We are suppliers and stainless steel flange bolts manufacturers.
| Grade | 18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Eye Bolts |
|---|---|
| British standards | BS6105 (old: BSENISO 3506) which covers Part 1 bolts, screw and Us, part 2 nuts and part 4 tapping screws. |
| Stainless Steel Flange Bolts Size | Cold Froging : M2-M24 Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg Stainless Steel Flange Bolts M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes |
| Length | 3 mm to 200 mm |
| Stainless Steel Bolts, Us Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Standard: | DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute ANSI B 18.2.4 2M ANSI B 28.2.4 1M Flange Boltslength are defined in ASME B16.5 standard Hex nuts are defined in ASME B18.2.2 ASME B18.5 GB/T5782, GB/T5783, GB5783 |
| DIN Standard | B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985 |
| UTS – Unified Thread Standard | UNC, UNF, UNEF, UNS, NPT, NPTF |
| Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
| ISO – International Organization for Standardization | ISO 4032, ISO 4033, ISO 4017, ISO7380 JIS standards |
| Tolerance | +/-0.01mm to +/-0.05mm |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Finishing: | Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Finish | Per ASTM A380/A380M |
| Production process | Wire DraFlange, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
| Origin and service-region: | Origin of Stainless Steel Flange Bolts are Western European. However projects with eastern origin are possible on request. |
| Stainless Steel bolting materials Surface Coating: | Hot Dipped Galvanizing Flange Bolts Phosphate Flange Bolts Teflon Flange Bolts Ptfe Coated Flange Bolts Xylon Flange Bolts Zinc Phosphate Flange Bolts Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium Flange Bolts All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE. |
| Surface treatment | Polish Passivation Anodizing Sand blasting Heat-disposing Hot-dip galvanizing Rust preventive oil Black oxide coating Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver) |
| Top Manufacturers | SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc. |
| Stainless Steel Flange Bolts Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Why choose us? | Best Price in India and compare to China Professional technical team High precision threads Strong production line Manifold Pipe Solution Inc. will be your reliable partner |
| MOQ | 5 pieces |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1, Tensile testing to ISO 898-1 Nut proof load testing to ISO 898-2 Suitability for preloading to EN 14399-2 Suitability test for calibrated preload to EN 14399-10 Charpy Impact testing in accordance with ISO 148-1 Hardness testing to ISO 6508-1 Tri-Roll Thread Comparators Calibrated gauges and tools |
| Free Samples | Yes |
| Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
| Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
| Other available material | Stainless Steel Flange Bolts: SUS201, SUS304, SUS316, SUS410 Brass Flange Bolts: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200CuZn37), C28000(CuZn40) Bronze Flange Bolts: C51000, C52100, C54400 etc Aluminum Flange Bolts: Al6061, Al6063 etc Aluminum Alloy Flange Bolts: Al6061, Al6063 etc Titanium and Titanium Alloy Flange Bolts: TAD, TA1-TA8, TB2, TC1-TC10 Alloy steel Flange Bolts: SCM435, C10B21, C10B33 |
| Stainless Steel Flange Bolts dealers & distributors are located in | Ernakulam, Istanbul, Vadodara, Manama, Mexico Rajkot, Nagpur, Gimhae-si, Indore, Ankara, Hyderabad, Caracas, Ahvaz, Kanpur, Abu Dhabi, Karachi, Perth, Riyadh, Ludhiana, Lagos, Kolkata, Tau, London, Courbevoie, Dammam, Bengaluru, Kuwait , Pimpri-Chinchwad, New Delhi, Gurgaon, Melbourne, Thiruvananthapuram, Sydney, Noida, Baroda, Khobar, Calgary, Janeiro, Ahmedabad, Gujarat, Chennai, Ludhiana, Bangalore, India, Mumbai, Coimbatore, Tehran, Muscat, Surat, Bogota, , Ranchi, Montreal, Howrah, Santiago, Jamshedpur, Port-of-Spain |
| Uses & application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
India’s Largest Manufacturer Of Stainless Steel Hex Head Flange Bolts, Stainless Steel Flange Head Bolts In Mumbai, India

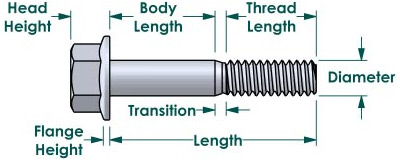

Dimensions Of Stainless Steel Flange Bolts
| d | ds | s | dc | k | b | L | |||
|---|---|---|---|---|---|---|---|---|---|
| Nominal Diameter | Thread Pitch | Body Diameter | Width Across Flats | Flange Diameter | Head Height | Thread Length | Lengths Under the Head | ||
| (coarse) | Max. | Min. | Max. | Min. | Max. | Max. | Nominal | ||
| M6 | 1 | 6 | 5.82 | 10 | 9.78 | 14.2 | 6.6 | 18 | 10-60 |
| M8 | 1.25 | 8 | 7.78 | 13 | 12.73 | 18 | 8.1 | 22 | 12-80 |
| M10 | 1.5 | 10 | 9.78 | 15 | 14.73 | 22.3 | 9.2 | 26 | 16-80 |
| M12 | 1.75 | 12 | 11.73 | 16 | 15.73 | 26.6 | 11.5 | 30 | 25-120 |
| M14 | 2 | 14 | 13.73 | 18 | 17.73 | 30.5 | 12.8 | 34 | 30-120 |
| M16 | 2 | 16 | 15.73 | 21 | 20.67 | 35 | 14.4 | 38 | 40-120 |
| M20 | 2.5 | 20 | 19.67 | 27 | 26.67 | 43 | 17.1 | 46 | 40-120 |
| Flange Bolt Diameter |
Head/Wrench Size* |
|---|---|
| Hex Flange Bolt (IFI-111) and Hex Flange Lag | |
| 1/4″ | 3/8″ |
| 5/16″ | 1/2″ |
| 3/8″ | 9/16″ |
| 7/16″ | 5/8″ |
| 1/2″ | 3/4″ |
| 9/16″ | 13/16″ |
| 5/8″ | 15/16″ |
| 3/4″ | 1-1/8″ |
| * This is the width across the flats. | |
| LENGTH | DIAMETER | ||||||
|---|---|---|---|---|---|---|---|
| M16 | M20 | M22 | M24 | M27 | M30 | M36 | |
| 40 | 10.28 | ||||||
| 45 | 11.07 | 180.30 | |||||
| 50 | 11.86 | 19.25 | 25.20 | ||||
| 55 | 12.65 | 20.50 | 26.69 | 33.74 | |||
| 60 | 13.44 | 21.73 | 28.18 | 35.22 | 48.09 | ||
| 65 | 14.23 | 22.96 | 29.67 | 37.29 | 50.34 | ||
| 70 | 15.02 | 24.19 | 31.16 | 39.07 | 52.58 | 67.25 | |
| 75 | 15.81 | 25.43 | 32.66 | 40.84 | 54.83 | 70.03 | 108.91 |
| 80 | 16.60 | 26.66 | 34.15 | 42.62 | 57.08 | 72.80 | 112.90 |
| 85 | 17.39 | 27.89 | 35.64 | 44.39 | 59.33 | 75.58 | 116.90 |
| 90 | 18.17 | 29.13 | 37.13 | 46.17 | 61.57 | 78.35 | 120.89 |
| 95 | 18.96 | 30.36 | 38.62 | 47.94 | 63.82 | 81.13 | 124.89 |
| 100 | 19.75 | 31.59 | 40.12 | 49.72 | 66.07 | 83.90 | 128.88 |
| 110 | 21.14 | 33.77 | 42.78 | 52.85 | 68.56 | 88.84 | 136.20 |
| 120 | 22.72 | 36.24 | 45.77 | 56.41 | 73.06 | 94.39 | 144.19 |
| 130 | 24.30 | 38.70 | 48.75 | 59.96 | 77.55 | 99.94 | 152.18 |
| 140 | 25.88 | 41.17 | 51.73 | 63.51 | 82.05 | 105.49 | 160.17 |
| 150 | 27.46 | 43.93 | 54.72 | 67.06 | 86.54 | 111.04 | 168.16 |
| 160 | 29.03 | 46.10 | 57.70 | 70.61 | 91.04 | 116.59 | 176.15 |
| 170 | 30.61 | 48.57 | 60.69 | 74.16 | 95.53 | 122.14 | 184.14 |
| 180 | 32.19 | 51.03 | 63.67 | 77.71 | 100.03 | 127.69 | 192.13 |
| 190 | 33.77 | 53.50 | 66.65 | 81.26 | 104.52 | 133.24 | 200.12 |
| 200 | 35.35 | 55.96 | 69.44 | 84.82 | 109.02 | 138.79 | 208.11 |
| 210 | 113.52 | 144.34 | 216.10 | ||||
| 220 | 118.01 | 149.89 | 224.09 | ||||
| 230 | 122.51 | 155.44 | 232.08 | ||||
| 240 | 127.00 | 160.99 | 240.07 | ||||
| 250 | 131.50 | 166.54 | 248.06 | ||||
| 260 | 135.99 | 172.09 | 256.05 | ||||
| 270 | 140.49 | 177.64 | 264.04 | ||||
| 280 | 144.98 | 183.19 | 272.03 | ||||
| 290 | 149.48 | 188.74 | 280.02 | ||||
| 300 | 153.97 | 194.29 | 288.01 | ||||
Buy Stainless Steel Metric Flange Head Bolts, 12 Point Flange Bolts Stainless Steel, Hex Flange Bolt Din 6921 At Factory Price In India
