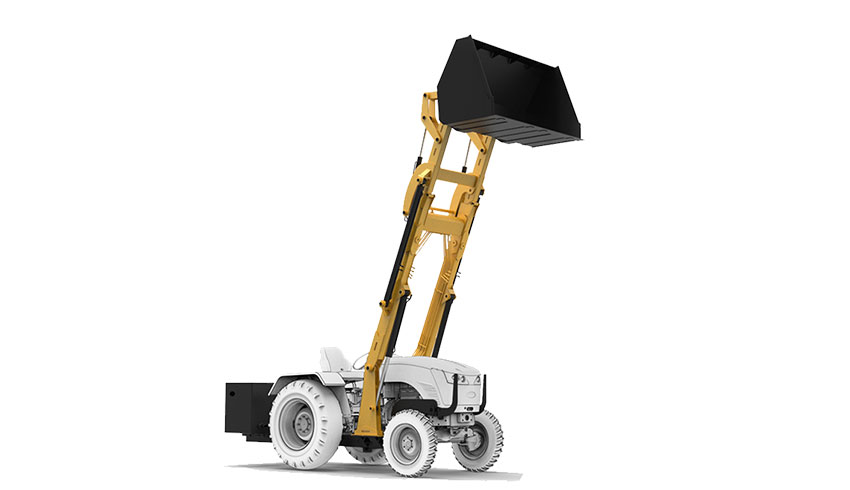

Telescopic Unloader

Telescopic loader & Unloader

Telescopic Unloader

Features

  • Radial Loader
  • More Dump Height
  • Wider Swing LEG
  • 360 Degree ARM Rotation
  • More Horizontal Reach
  • Payload 400kg at Full Reach
  • 360 Degree Continuos Rotation
  • Front End Loader or Dozer Option for Stability

Technical information

Specification
    mm(feet_inches)
A Normal reach at ground 3441 (11' 3.5")
B Telescopic reach at ground 4695 (15' 5")
C Reach at 50° dump 1043 (3.5")
D Roll back angle 25°
E Dump angle 50°
F Normal dump height 4030 (14' 2")
G Normal loader over height 5022 (16' 5")
H Loader hinge pin height at normal 5098 (16.5' 3")
I Extended dump height 5778 (18.5' 6")
J Extended loader over height 6450 (21' 2")
K Loader hinge pin height at extended 6525 (21' 5")
L Fork maximum opening 1182 (3.5' 5")
