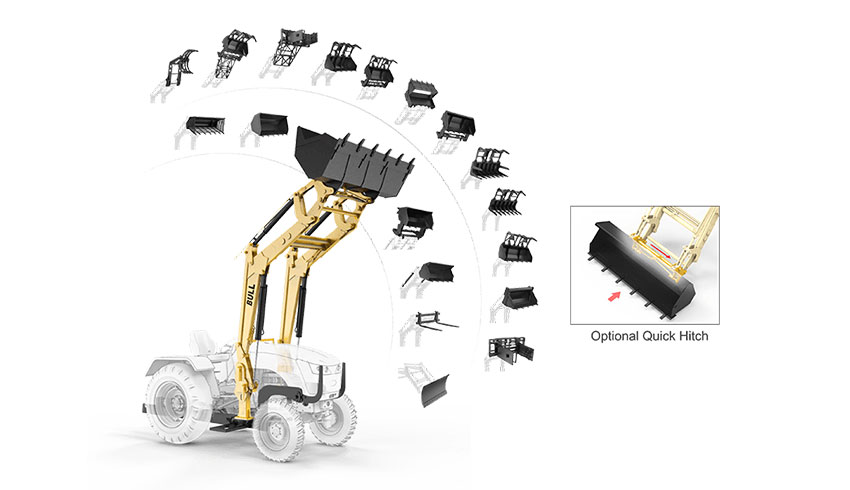

Telescopic loader

Telescopic loader & Unloader

Telescopic loader

Features

  • Radial Loader
  • More Dump Height
  • Wider Swing LEG
  • 360 Degree ARM Rotation
  • More Horizontal Reach
  • Payload 400kg at Full Reach
  • 360 Degree Continuos Rotation
  • Front End Loader or Dozer Option for Stability

Technical information

Specification (2 Wheel)
    mm(feet_inches)
A Normal reach at ground 3440 (11' 3")
B Telescopic reach at ground 5000 (16' 5")
C Reach at 45° dump 1150 (3.5' 3.2")
D Roll back angle 40°
E Dump angle 45°
F Normal dump height 4030 (13' 3")
G Normal loader over height 4850 (15.5' 5")
H Loader hinge pin height at normal 5098 (16.5' 2")
I Telescopic dump height 5460 (17.5' 5")
J Telescopic loader over height 6285 (20' 5")
K Loader hinge pin height at telescopic 6285 (21' 5")
