Front end loader

Hydraulic Loader

Front end loader

Features

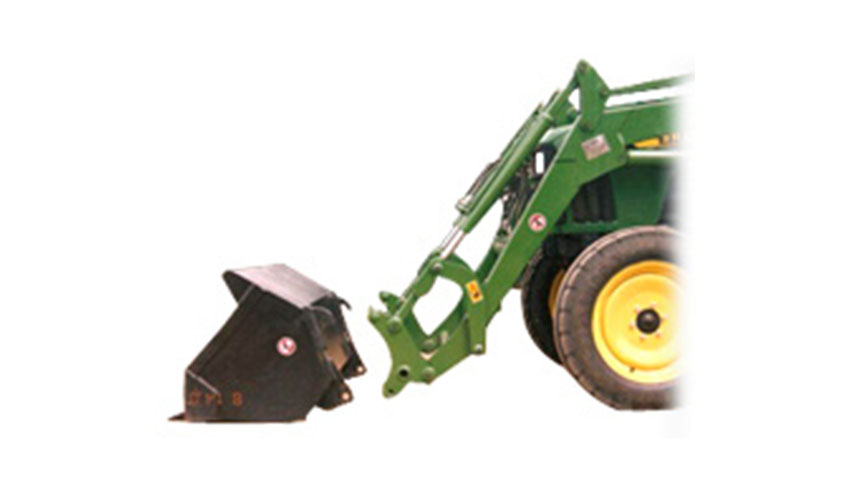

  • Bucket quick release system
  • Better roll back angle
  • Better dump angle
  • 3D Positional valve stand assembly
  • Bucket level indicator
  • Easy clutch removing system
  • Parallel Linkage Mechanism
  • Better reach at maximum height
  • Parking stand as standard supply

USP

  • 39 types of optional application specific interchangeable buckets areeasily detachable even without using spanner
  • Front end loader can also be fitted to old tractors
  • Excellent bucket angle- 45 and 90 degree
  • Designed for heavy duty applications

Technical information

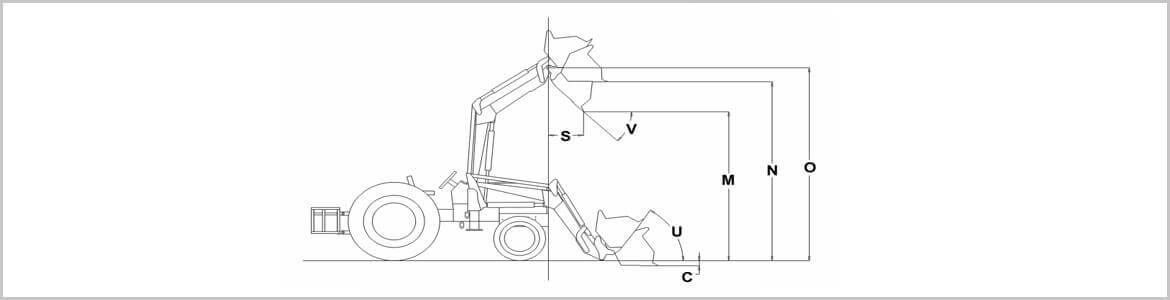

Dimensions
Specification (2 Wheel)
    STD V2 LOADER EXT_HT_V2_LOADER MAXX_V2_LOADER
  LOADERS ( on 2 Wheel Drive Trs ) mm(FEET_INCHES) mm(FEET_INCHES) mm(FEET_INCHES)
O Loader Hinge Pin Height 3350 (11') 3700 (12' 13") 3700 (12' 13")
N Load Over Height 3100 (10' 2") 3520 (11' 5") 4350 (14' 3")
M Dump Height @45° 2680 (8' 8") 2988 (9' 8") 2988 (9' 8")
  WITH OPTIONAL BOOSTER BUCKET(DUMP HEIGHT) - 4195 (13' 7") 4195 (13' 7")
S Reach At Full Height Fully Dumped 700 (2'3") 700 (2'3") 700 (2'3")
C Working Depth 150 (5") 150 (5") 150 (5")
V Dump Angle 90° 90° 45°
U Roll Back At Ground 60° 60° 60°
  Bucket Capacity 0.6 cu.m. (900 kg) 0.6 cu.m. (900 kg) 0.6 cu.m. (900 kg)
  Output (90% bucket cap & 40 sec opn cycle time)* 48.6 cum/hr = 1700 cu.ft/hr
Specification (4 Wheel)
    STD V2 LOADER EXT_HT_V2_LOADER MAXX_V2_LOADER
  LOADERS ( on 4 Wheel Drive Trs ) mm(FEET_INCHES) mm(FEET_INCHES) mm(FEET_INCHES)
O Loader Hinge Pin Height 3350 (11') 3700 (12' 13") 3700 (12' 13")
N Load Over Height 3100 (10' 2") 3520 (11' 5") 4350 (14' 3")
M Dump Height @45° 2680 (8' 8") 2988 (9' 8") 2988 (9' 8")
  WITH OPTIONAL BOOSTER BUCKET(DUMP HEIGHT) - 4195 (13' 7") 4195 (13' 7")
S Reach At Full Height Fully Dumped 700 (2'3") 700 (2'3") 700 (2'3")
C Working Depth 150 (5") 150 (5") 150 (5")
V Dump Angle 90° 90° 45°
U Roll Back At Ground 60° 60° 60°
  Bucket Capacity 0.75 cu.m.(1200 kg) 0.75 cu.m.(1200 kg) 0.75 cu.m.(1200 kg)
  Output (90% bucket cap & 40 sec opn cycle time)* 60 cum/hr = 2100 cu.ft/hr
