Back end loader

Hydraulic Loader

Back end loader

Features

  • Curved Room
  • Better Stability with Swinging Legs
  • Better Loadover Height and Reach
  • Higher Depth
  • Excellent Breakout and Digging Force
  • Powder Coating
  • Easy Mountable and Detachable
  • Hardened Pins and Bushes

Technical information

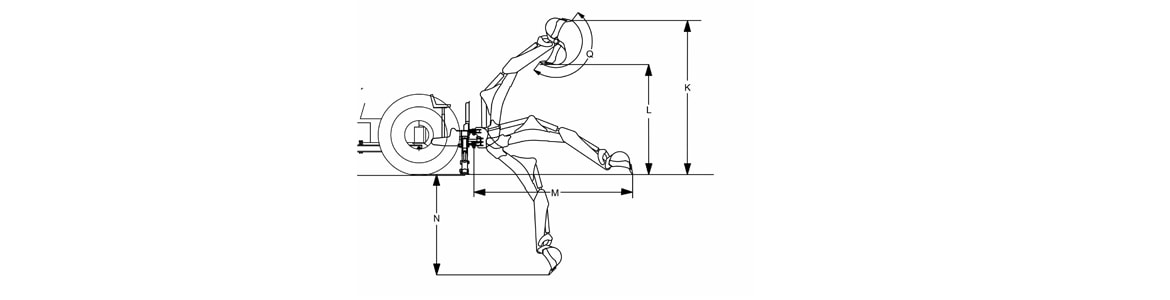

Dimensions
Specification
  Description mm(Ft-inch)
K Max.Working Height 3170(10'-5")
L Max.Load Over Height 2150(7')
M Reach at Ground Level to Slew Center 3170(10'-6")
N Max.Digging Depth 2305(7'-6")
Q Bucket Rotation Tower 1800 Degree
Bucket Volume 0.12 m3
Bucket Breakout Force 1.5 Ton Force
