LVDT Sensor DAE

LVDT Sensor DAE

  • Nominal stroke: 25 mm bis 1000 mm
  • Installation length: 145 mm bis 1400 mm
  • Case diameter: 5 mm
  • Output signal: 0V bis 10v
  • Oprating temperature:0oC bis +60oC
  • Protection class: IP 65/IP 67
LVDT sensor DF

LVDT sensor DF

  • Nominal stroke: 6 mm upto 130 mm
  • Installation length: 70 mm upto 375 mm
  • Case diameter: 20 mm
  • Connections: Braided wire,axial cable
  • Carrier frequency: 5 kHz(option:10 kHz)
  • Oprating temperature:-20 ...80oC (option up to 120oC
  • Protection (DIN 40050): IP 65

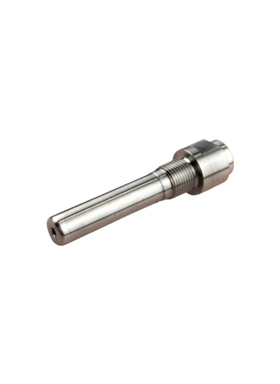

LVDT sensor DGB

LVDT sensor DGB

  • Nominal stroke: 25 mm bis 400 mm
  • Pressure resistance: upto 300 bar
  • Housing diameter: 15 mm
  • Connections thread: M 18 x 1,5
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-40 ...80oC (option up to 120oC
  • Protection (DIN 40050): IP 65

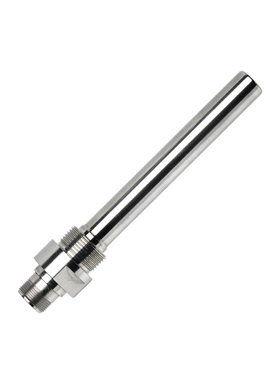

LVDT sensor DGO

LVDT sensor DGO

  • Nominal stroke: 25 mm upto 1000 mm
  • Pressure resistance: 300 bar standard
  • Case diameter: 20 mm
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-40 ...80oC (option up to 120oC
  • Safety class: IP 65

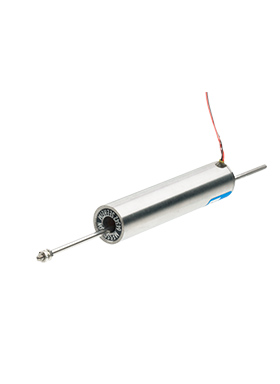

LVDT sensor DK

LVDT sensor DK

  • Nominal stroke: 2 mm upto 250 mm
  • Installation length: 30 mm upto 510 mm
  • Case diameter: 20 mm
  • Connections: Braided wire,axial cable,radial cable
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-50 ...60oC
  • Safety class: IP 64

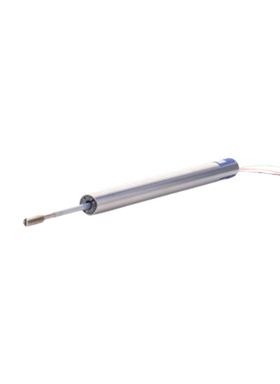

LVDT sensor DLH

LVDT sensor DLH

  • Nominal stroke: 50 mm upto 500 mm
  • Installation length: 100 mm upto 600 mm
  • Case diameter: 12 mm
  • Carrier frequency: 5 kHz(other frequencies on request)
  • Linearity:0.5%,0.25%,0.1%

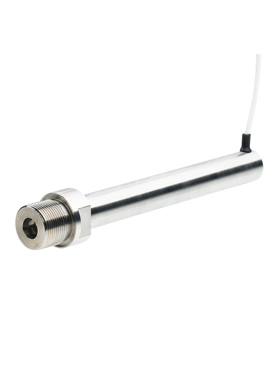

LVDT sensor DPF

LVDT sensor DPF

  • Nominal stroke: 16 mm(other option possible)
  • Installation length: 74 mm (other option possible)
  • Case diameter: 10 mm(other option possible)
  • Output signal:0...v/4...20 mA
  • Output PWM:<0.4 VDC to>4.6 VDC
  • Oprating temperature:0oC bis +80oC
  • Protection class(DIN 40050): IP 65

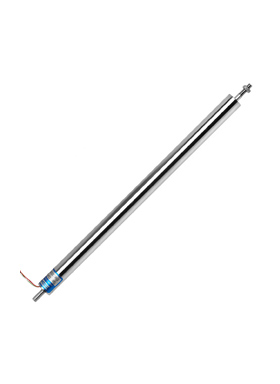

LVDT sensor DU

LVDT sensor DU

  • Nominal stroke: 15 mm upto 1000 mm
  • Installation length: 70 mm upto 1420 mm
  • Case diameter: 14 mm
  • Connections: Braided wire,axial cable,radial cable
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature: -40oC to +80oC (option:upto 120oC)
  • Protection class(DIN 40050): IP 64

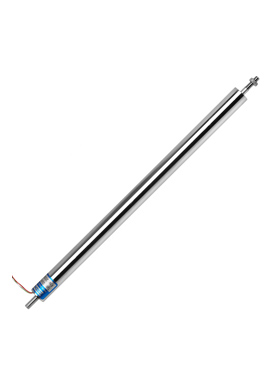

LVDT sensor DUH

LVDT sensor DUH

  • Nominal stroke: 50 mm upto 500 mm
  • Installation length: 100 mm upto 600 mm
  • Case diameter: 16 mm, core diameter 3 mm or 5mm
  • Connections: Braided wire,axial cable(axial,radial),connector(axial,radial)
  • Carrier frequency: 5 kHz/li>
  • Protection class(DIN 40050): IP 64
  • Oprating temperature: -40oC to +80oC (option:upto 120oC)
  • Optionally integrated eletronics and spring loaded version

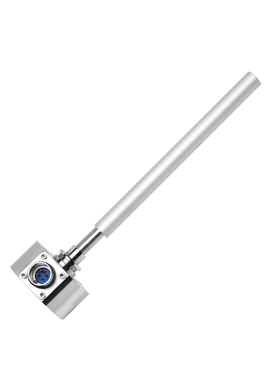

LVDT sensor WA

LVDT sensor WA

  • Nominal stroke: 60 mm upto 1000 mm
  • Mechanical stroke:70 mm upto 1100 mm
  • Case diameter: 16/13 mm
  • Output signal: 0V bis 10v
  • Oprating temperature:0...60oC
  • Protection class(DIN 40050): IP 65

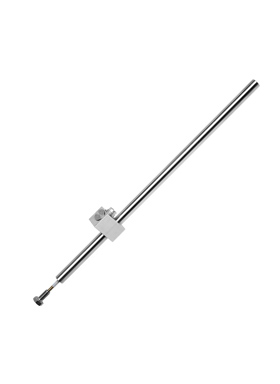

LVDT sensor WLU

LVDT sensor WLU

  • Nominal stroke: 100 mm upto 300 mm
  • Mechanical stroke:55 mm upto 185 mm
  • Case diameter: 16 mm
  • Oprating temperature: -50...120oC, briefly upto 150oC
  • Protection class(DIN 40050): IP 65
LVDT sensor WP

LVDT sensor WP

  • Nominal stroke: 60 mm bis 1000 mm
  • Mechanical stroke: 70 mm bis 1100 mm
  • Case diameter: 11 mm
  • Operating temperature: -20 ... 80 °C, Option bis 120 °C
  • Protection: IP 65
  • Pressure resistance 320 bar
