LVDT Sensor DAE

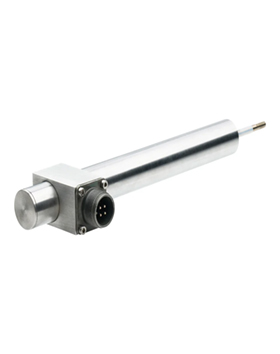

LVDT sensor DTC

  • Nominal stroke: 20 mm up to 100 mm
  • Installation length: 195 mm up to 435 mm
  • Case diameter: 25 mm
  • Plunger diameter: 3mm
  • Operating temperature: -50 °C to +120 °C
  • Protection class: IP 54
LVDT sensor DF

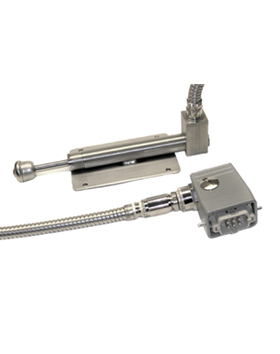

LVDT sensor DTK 50 AE

  • Nominal stroke: 50 mm to 100 mm
  • Case diameter: 25 mm
  • Operating temperature: Probe sensor: 0 °C ... +120 °C, electronics: 0 °C ... +60 °C
  • Probe: IP 64, electronics: IP 62 (plugged)
LVDT sensor DGB

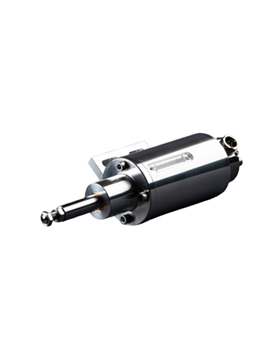

LVDT sensor VMI

  • Nominal stroke: 50 mm to 100 mm
  • Mechanical stroke: 52 mm to 105 mm
  • Case diameter: 3 mm
  • Operating temperature: 0 ... 70 °C
  • Protection class (DIN 40050): IP 64
LVDT sensor DGO

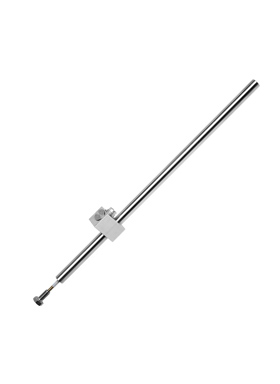

LVDT sensor WLU

  • Nominal stroke: 100 mm up to 300 mm
  • Mechanical stroke: 55 mm up to 185 mm
  • Case diameter: 16 mm
  • Operating temperature: -50 ... 120 °C, briefly up to 150 °C
  • Protection class (DIN 40050): IP 65
